Toyota CH-R: USB Type-C charging port

The USB Type-C charging port are used to supply 3 A of electricity at 5 V (power consumption of 16.5 W) to external devices.

The USB Type-C charging port are for charging only. They are not designed for data transfer or other purposes.

Depending on the external device, it may not charge properly. Refer to the manual included with the device before using a USB Type-C charging port.

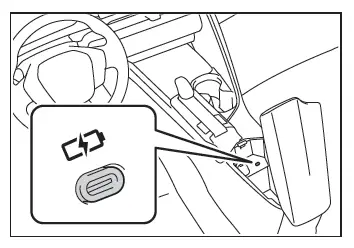

■ Front

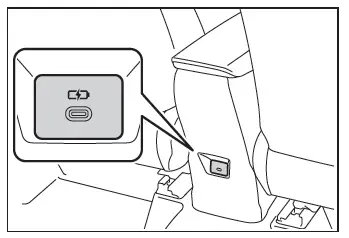

■ Rear (if equipped)

■The USB Type-C charging port can be used when

The power switch is in ACC or ON.

■Situations in which the USB Type-C charging port may not operate correctly

• If a device which consumes more than 3 A at 5 V (power consumption of 16.5 W) is connected
• If a device designed to communicate with a personal computer, such as a USB memory device, is connected
• If the connected external device is turned off (depending on device)
• If the temperature inside the vehicle is high, such as after the vehicle has been parked in the sun

■About connected external device

Depending on the connected external device, charging may occasionally be suspended and then start again. This is not a malfunction.

NOTICE

■To prevent damage to the USB Type-C charging port

• Do not insert foreign objects into the port.
• Do not spill water or other liquids into the port.
• Do not apply excessive force to or impact the USB Type-C charging port.
• Do not disassemble or modify the USB Type-C charging port.

■To prevent damage to external devices

• Do not leave external devices in the vehicle. The temperature inside the vehicle may become high, resulting in damage to an external device.
• Do not push down on or apply unnecessary force to an external device or the cable of an external device while it is connected.

■To prevent 12-volt battery discharge

Do not use the USB Type-C charging port for a long period of time with the hybrid system stopped.
