Toyota CH-R: Outside rear view mirrors

The rear view mirror's position can be adjusted to enable sufficient confirmation of the rear view.

■When using the outside rear view mirrors in a cold weather

When it is cold and the outside rear view mirrors are frozen, it may not be possible to fold/extend them or adjust the mirror surface. Remove the ice, snow, etc.

covering the outside rear view mirrors.

WARNING

■Important points while driving

Observe the following precautions while driving.

Failure to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury.

• Do not adjust the mirrors while driving.
• Do not drive with the mirrors folded.
• Both the driver and passenger side mirrors must be extended and properly adjusted before driving.

Adjustment procedure

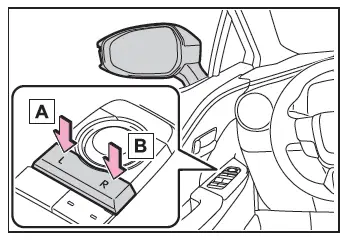

1. To select a mirror to adjust, press the switch.

1. Left
2. Right

2. To adjust the mirror, press the switch.

1. Up
2. Right
3. Down
4. Left

■Mirror angle can be adjusted when

The power switch is in ACC or ON.

■When the mirrors are fogged up

The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the rear window defogger to turn on the outside rear view mirror defoggers.

WARNING

■When the mirror defoggers are operating

Do not touch the rear view mirror surfaces, as they can become very hot and burn you.

Folding and extending the mirrors

Manual type

Push the mirror back in the direction of the vehicle's rear.

Power type

1. Folds the mirrors
2. Extends the mirrors

Putting the outside rear view mirror folding switch in the neutral position sets the mirrors to automatic mode.

Automatic mode allows the folding or extending of the mirrors to be linked to locking/unlocking of the doors with the smart entry function or wireless remote control.

■Customization

Some functions can be customized.

WARNING

■When a mirror is moving

To avoid personal injury and mirror malfunction, be careful not to get your hand caught by the moving mirror.
