Toyota CH-R: Cleaning the Digital Rear-view Mirror

■ Cleaning the mirror surface

If the mirror surface is dirty, the image on the display may be difficult to see.

Clean the mirror surface gently using a soft dry cloth.

■ Cleaning the camera

If it is difficult to see the Digital Rear-view Mirror image because water, snow, mud, etc. is stuck to the camera lens, operate the rear window washer or change to optical mirror mode.

■The camera

The camera for the Digital Rear-view Mirror is located as shown.

■Cleaning the camera with washer fluid

• When cleaning the camera, it may be difficult to see the image due to the washer fluid. Therefore, take care in the surrounding area while driving.
• If washer fluid remains on the camera lens surface after cleaning, the image may be difficult to see at night due to the height or inclination of the headlights of the vehicle behind. In this case, change to optical mirror mode.
• Some dirts may not be removed completely after cleaning. In this case, rinse the camera lens with a large quantity of water and then wipe it clean with a soft cloth dampened with water.
• Washer fluid is sprayed onto the camera lens surface. Therefore, the ice, snow, etc. adhering around the camera cannot be removed.

NOTICE

■To prevent the Digital Rear-view Mirror from malfunctioning

• Do not use detergents, such as thinner, benzene, and alcohol to clean the mirror. They may discolor, deteriorate or damage the mirror surface.
• Do not remove, disassemble or modify the mirror.

■To prevent the camera from malfunctioning

• Observe the following precautions, otherwise the Digital Rear-view Mirror may not operate properly.
  • Do not strike or hit the camera or subject it to a strong impact, as the camera installation position and angle may be changed.
  • Do not remove, disassemble or modify the camera.
  • When washing the camera, rinse it with a large quantity of water and then wipe it clean with a soft cloth dampened with water.

    Do not strongly rub the camera lens, as it may be scratched and will not be able to transmit a clear image.

  • Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to the camera cover. If this happens, wipe it off as soon as possible.
  • Do not apply hot water to the camera in cold weather, as the sudden change of temperature may cause the camera to not operate properly.
  • When using a high pressure washer to wash the vehicle, do not directly spray the camera and its surrounding area, as doing so may cause the camera to not operate properly.
• Do not subject the camera to a strong impact as this could cause a malfunction.

  If this happens, have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer as soon as possible.

• Do not block the vent holes of the mirror. Otherwise, the mirror may be hot, leading to a malfunction or a fire.

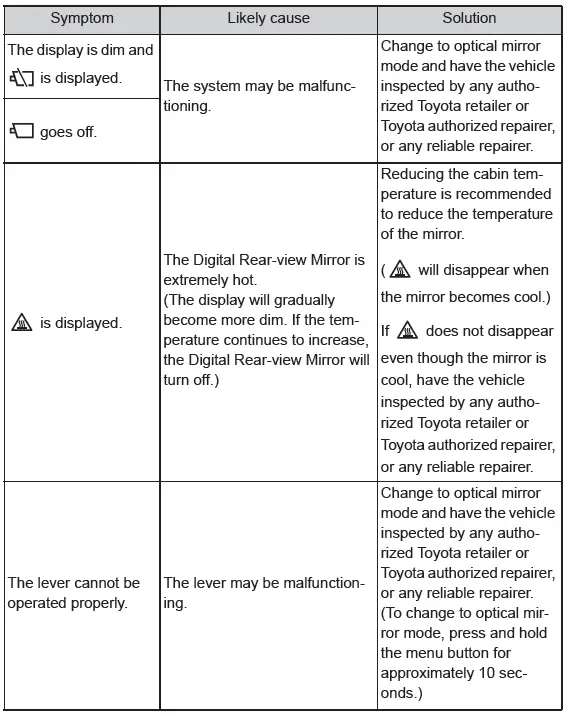

If you notice any symptoms

If you notice any of the following symptoms, refer to the following table for the likely cause and the solution.

If the symptom is not resolved by the solution, have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
