Toyota CH-R: Installing the spare tire

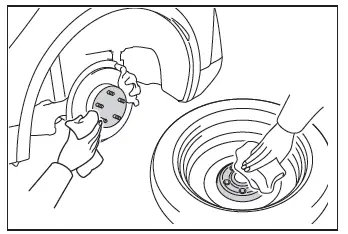

1. Remove any dirt or foreign matter from the wheel contact surface.

If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, causing the tire to come off.

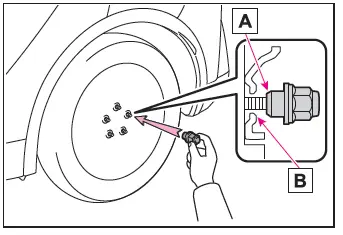

2. Install the tire and loosely tighten each wheel nut by hand by approximately the same amount.

When replacing an aluminum wheel with a steel wheel (including a compact spare tire), tighten the wheel nuts until the tapered portion A comes into loose contact with the disc wheel seat B.

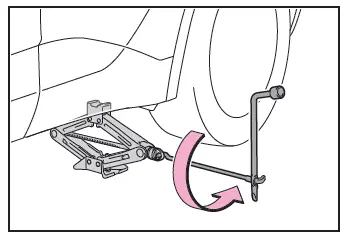

3. Lower the vehicle.

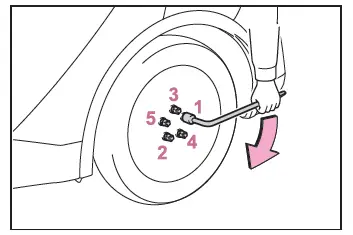

4. Securely tighten the wheel nuts two or three times in the order shown in the illustration using a wheel nut wrench.

Tightening torque: 103 N-m (10.5 kgf-m, 76 ft-lbf)

5. Stow the flat tire, tire jack and all tools.

■The compact spare tire (if equipped)

• The compact spare tire is identified by the label "TEMPORARY USE ONLY" on the tire sidewall. Use the compact spare tire temporarily, and only in an emergency.
• Make sure to check the tire inflation pressure of the compact spare tire.

■When the compact spare tire (if equipped) is equipped

The vehicle becomes lower when driving with the compact spare tire compared to when driving with standard tires.

■When using the compact spare tire (if equipped)

As the compact spare tire is not equipped with a tire pressure warning valve and transmitter, low inflation pressure of the compact spare tire will not be indicated by the tire pressure warning system. Also, if you replace the compact spare tire after the tire pressure warning light comes on, the light remains on.

■If you have a flat front tire on a road covered with snow or ice (vehicles with a compact spare tire)

Install the compact spare tire on one of the rear wheels of the vehicle. Perform the following steps and fit tire chains to the front tires:

1. Replace a rear tire with the compact spare tire.

2. Replace the flat front tire with the tire removed from the rear of the vehicle.

3. Fit tire chains to the front tires.

WARNING

■When using the compact spare tire (if equipped)

• Remember that the compact spare tire provided is specifically designed for use with your vehicle.

  Do not use your compact spare tire on another vehicle.

• Do not use more than one compact spare tires simultaneously.
• Replace the compact spare tire with a standard tire as soon as possible.
• Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations that cause sudden engine braking.

■When the compact spare tire (if equipped) is attached

The vehicle speed may not be correctly detected, and the following systems may not operate correctly:

• ABS & Brake assist
• VSC
• TRC
• Trailer Sway Control
• AHB (Automatic High Beam) (if equipped)
• AHS (Adaptive High-beam System) (if equipped)
• Dynamic radar cruise control
• Cruise control
• EPS
• PCS (Pre-Collision System)
• LTA (Lane Tracing Assist)
• LDA (Lane Departure Alert)
• Tire pressure warning system
• Toyota parking assist-sensor (if equipped)
• Toyota parking assist monitor (if equipped)
• PKSB (Parking Support Brake) (if equipped)
• BSM (Blind Spot Monitor)
• RSA (Road Sign Assist) (if equipped)
• Safe Exit Assist
• Automatic Rear Flashing Hazard Lights (if equipped)
• RCTA (Rear Crossing Traffic Alert)
• Toyota Teammate Advanced Park (if equipped)
• Panoramic view monitor (if equipped)
• Navigation system (if equipped)

Also, not only can the following system not be utilized fully, but it may actually negatively affect the drivetrain components:

• E-Four (Electronic On-Demand AWD/4WD system) (if equipped)

■Speed limit when using the compact spare tire (if equipped)

Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare tire is installed on the vehicle.

Failure to observe this precaution may lead to an accident causing death or serious injury.

■After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in their storage location to reduce the possibility of personal injury during a collision or sudden braking.

NOTICE

■Be careful when driving over bumps with the compact spare tire (if equipped) installed on the vehicle.

The vehicle becomes lower when driving with the compact spare tire compared to when driving with standard tires. Be careful when driving over uneven road surfaces.

■Driving with tire chains and the compact spare tire (if equipped)

Do not fit tire chains to the compact spare tire. Tire chains may damage the vehicle body and adversely affect driving performance.

■When replacing the tires

When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer as the tire pressure warning valve and transmitter may be damaged if not handled correctly.
