Toyota CH-R: If you have a flat tire (vehicles with a spare tire)

Your vehicle is equipped with a spare tire. The flat tire can be replaced with the spare tire.

WARNING

■If you have a flat tire

Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the wheel beyond repair, which could result in an accident.

Before jacking up the vehicle

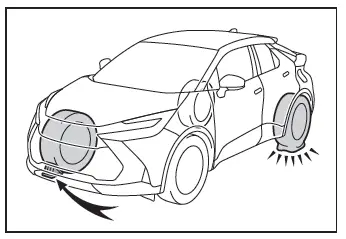

• Stop the vehicle in a safe place on a hard, flat surface.
• Set the parking brake.
• Shift the shift position to P.
• Stop the hybrid system.
• Turn on the emergency flashers.

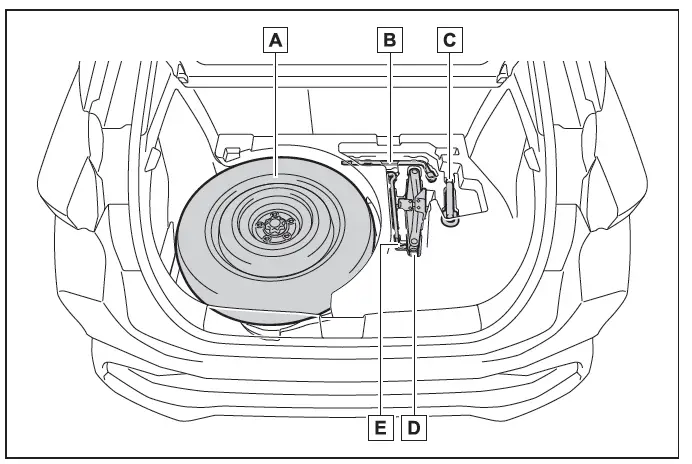

Location of the spare tire, jack and tools

1. Spare tire
2. Wheel nut wrench
3. Towing eyelet
4. Jack
5. Jack handle

WARNING

■Using the tire jack

Observe the following precautions.

Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading to death or serious injury.

• Do not use the tire jack for any purpose other than replacing tires or installing and removing tire chains.
• Only use the tire jack that comes with this vehicle for replacing a flat tire. Do not use it on other vehicles, and do not use other tire jacks for replacing tires on this vehicle.
• Put the jack properly in its jack point.

• Do not put any part of your body under the vehicle while it is supported by the jack.
• Do not start the hybrid system or drive the vehicle while the vehicle is supported by the jack.
• Do not raise the vehicle while someone is inside.
• When raising the vehicle, do not put an object on or under the jack.
• Do not raise the vehicle to a height greater than that required to replace the tire.
• Use a jack stand if it is necessary to get under the vehicle.
• When lowering the vehicle, make sure that there is no-one near the vehicle. If there are people nearby, warn them vocally before lowering.

Taking out the jack

1. Remove the deck board.

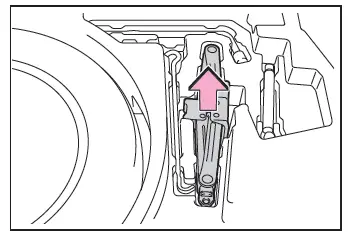

2. Take out the jack.

Taking out the spare tire

1. Remove the deck board.

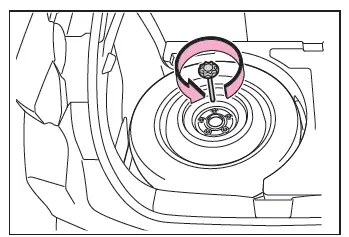

2. Loosen the center fastener that secures the spare tire.

WARNING

■When storing the spare tire

Be careful not get fingers caught or other body parts between the spare tire and the body of the vehicle.

Replacing a flat tire

1. Chock the tires.

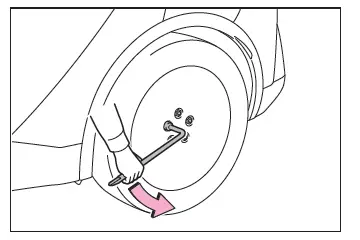

2. Slightly loosen the wheel nuts (one turn).

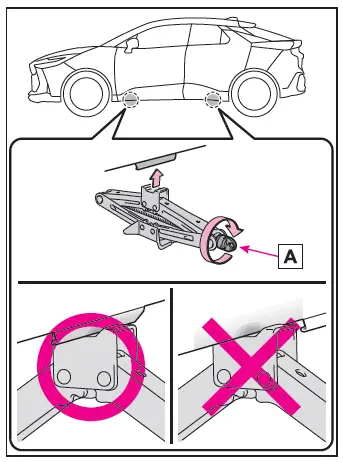

3. Turn the tire jack portion A by hand until the center of the recessed portion of the jack is in contact with the center of the jack point.

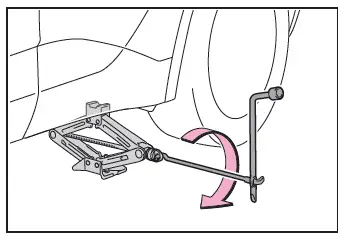

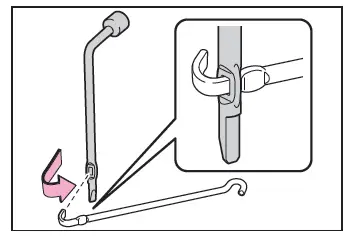

4. Assemble the jack handle extension.

5. Raise the vehicle until the tire is slightly raised off the ground.

6. Remove all the wheel nuts and the tire.

When resting the tire on the ground, place the tire so that the wheel design faces up to avoid scratching the wheel surface.

WARNING

■Replacing a flat tire

• Observe the following precautions.

  Failure to do so may result in serious injury:

  • Do not try to remove the wheel ornament by hand. Take due care in handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately after the vehicle has been driven. After the vehicle has been driven the disc wheels and the area around the brakes will be extremely hot. Touching these areas with hands, feet or other body parts while changing a tire, etc. may result in burns.
• Failure to follow these precautions could cause the wheel nuts to loosen and the tire to fall off, resulting in death or serious injury.
  • Never use oil or grease on the wheel bolts or wheel nuts.

    Oil and grease may cause the wheel nuts to be excessively tightened, leading to bolt or disc wheel damage. Remove any oil or grease that has adhered when installing the wheel nuts.

  • After replacing a tire, check the tightening torque as soon as possible.

    Wheel nut torque: 103 N-m (10.5 kgf-m, 76 ft-lbf)

  • Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while the vehicle is moving.
  • When installing a tire, only use wheel nuts that have been specifically designed for that wheel.
  • If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

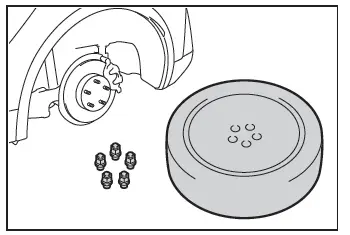

  • When installing the wheel nuts, be sure to install them with the tapered ends facing inward.

■Replacing a flat tire for vehicles with power back door (if equipped)

In cases such as when replacing tires, make sure to turn off the power back door system.

Failure to do so may cause the back door to operate unintentionally if the power back door switch is accidentally touched, resulting in hands and fingers being caught and injured.

Taking out the emergency tire puncture repair kitInstalling the spare tire
