Toyota CH-R: Do-it-yourself service precautions

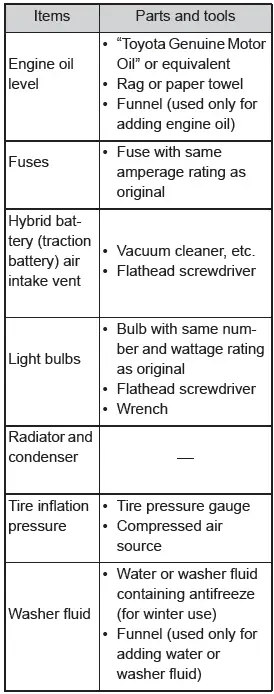

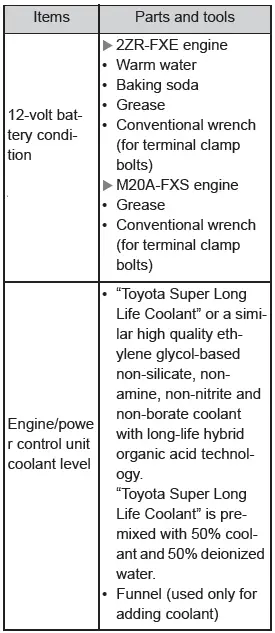

If you perform maintenance by yourself, be sure to follow the correct procedure as given in these sections.

Maintenance

WARNING

The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized. To avoid death or serious injury, observe the following precautions.

■When working on the engine compartment

• Make sure that the "ACCESSORY" or "IGNITION ON" on the multi-information display and the "READY" indicator are both off.
• Keep hands, clothing and tools away from the moving fan.
• Be careful not to touch the engine, power control unit, radiator, exhaust manifold, etc. right after driving as they may be hot. Oil and other fluids may also be hot.
• Do not leave anything that may burn easily, such as paper and rags, in the engine compartment.
• Do not smoke, cause sparks or expose an open flame to fuel or 12- volt battery. Fuel and 12-volt battery fumes are flammable.
• Be extremely cautious when working on the 12-volt battery. It contains poisonous and corrosive sulfuric acid.
• Take care because brake fluid can harm your hands or eyes and damage painted surfaces. If fluid gets on your hands or in your eyes, flush the affected area with clean water immediately.

  If you still experience discomfort, consult a doctor.

■When working near the electric cooling fans or radiator grille

Be sure the power switch is off.

With the power switch in ON, the electric cooling fans may automatically start to run if the air conditioning is on and/or the coolant temperature is high.

■Safety glasses

Wear safety glasses to prevent flying or falling material, fluid spray, etc.

from getting in your eyes.

NOTICE

■If you remove the air cleaner filter

Driving with the air cleaner filter removed may cause excessive engine wear due to dirt in the air.

■If the fluid level is low or high

It is normal for the brake fluid level to go down slightly as the brake pads wear or when the fluid level in the accumulator is high.

If the reservoir needs frequent refilling, it may indicate a serious problem.
