Toyota CH-R: Child restraint system fixed with an ISOFIX lower anchorage

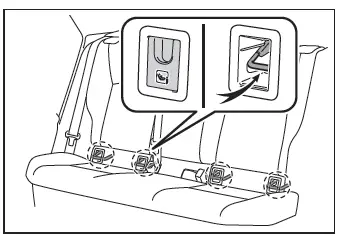

■ ISOFIX lower anchorages (ISOFIX child restraint system)

Lower anchorages are provided for the outboard rear seats. (Marks displaying the location of the anchorages are attached to the seats.)

■ Installation with ISOFIX lower anchorage (ISOFIX child restraint system)

Install the child restraint system in accordance to the operation manual enclosed with the child restraint system.

If the child restraint system on hand is not within the "universal" category (or the necessary information is not in the table), refer to the "Vehicle List" provided by the child restraint system maker for various possible installation positions, or check the compatibility after asking the retailer of the child seat.

1. If the head restraint interferes with your child restraint system, and the head restraint can be removed, remove the head restraint. Otherwise, put the head restraint in the upper most position.

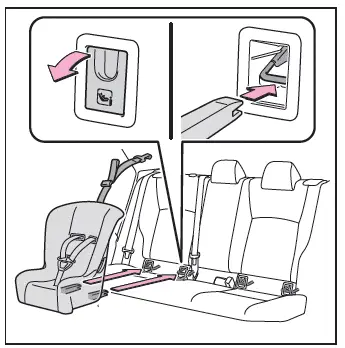

2. Remove the anchorage covers, and install the child restraint system to the seat.

The bars are installed behind the anchorage covers.

3. After installing the child restraint system, rock it back and forth to ensure that it is installed securely.

WARNING

■When installing a child restraint system

Observe the following precautions.

Failure to do so may result in death or serious injury.

• After securing a child restraint system, never adjust the seat.
• When using the lower anchorages, be sure that there are no foreign objects around the anchorages and that the seat belt is not caught behind the child restraint system.
• Follow all installation instructions provided by the child restraint system manufacturer.

Using a top tether anchorage

■ Top tether anchorages

Top tether anchorages are provided for the outboard rear seats.

Use top tether anchorages when fixing the top strap.

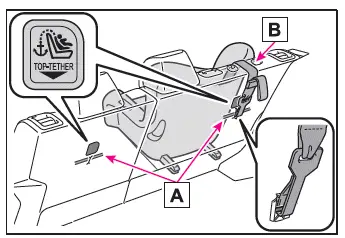

1. Top tether anchorages
2. Top strap

■ Fixing the top strap to the top tether anchorage

Install the child restraint system in accordance to the operation manual enclosed with the child restraint system.

1. Remove the luggage cover.

2. Adjust the head restraint to the upmost position.

If the head restraint interferes with the child restraint system or top strap installation and the head restraint can be removed, remove the head restraint.

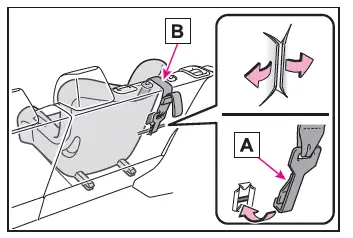

3. Latch the hook onto the top tether anchorage and tighten the top strap.

Make sure the top strap is securely latched.

When installing the child restraint system with the head restraint being raised, be sure to have the top strap pass underneath the head restraint.

1. Hook
2. Top strap

4. Reinstall the luggage cover.

WARNING

■When installing a child restraint system

Observe the following precautions.

Failure to do so may result in death or serious injury.

• Firmly attach the top strap and make sure that the belt is not twisted.
• Do not attach the top strap to anything other than the top tether anchorage.
• After securing a child restraint system, never adjust the seat.
• Follow all installation instructions provided by the child restraint system manufacturer.
• When installing the child restraint system with the head restraint being raised, after the head restraint has been raised and then the top tether anchorage has been fixed, do not lower the head restraint.
