Toyota CH-R: System components

The meter display type setting of head-up display can be changed.

The content displayed will defer according to the driving conditions and display mode of the head-up display. Depending on the situation, pop-up displays will also be displayed.

■ Full

Illustrations used in this text are intended as examples, and may differ from the image that is actually displayed by the head-up display.

1. Driving support system display area/Navigation system-linked display area (if equipped)/Hybrid system indicator or Tachometer display area
2. Driving support system display area
3. Speedometer
4. Shift position
5. RSA (Road Sign Assist) display (if equipped)

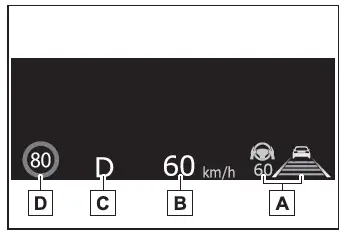

■ Standard

Illustrations used in this text are intended as examples, and may differ from the image that is actually displayed by the head-up display.

1. Driving support system display area
2. Speedometer
3. Shift position
4. RSA (Road Sign Assist) display (if equipped)

■ Minimum

1. Speedometer

■Head-up display will operate when

The power switch is in ON.

■When using the head-up display

The head-up display may seem dark or hard to see when viewed through sunglasses, especially polarized sunglasses.

Adjust the brightness of the head-up display or remove your sunglasses.

■Street name display (vehicles with navigation system)

Only street names which are included in the map data will be displayed.

WARNING

■When using the head-up display

• Check that the position and brightness of the head-up display image does not interfere with safe driving.

  Incorrect adjustment of the image's position or brightness may obstruct the driver's view and lead to an accident, resulting in death or serious injury.

• Do not continuously look at the head-up display while driving as you may fail to see pedestrians, objects on the road, etc., ahead of the vehicle.

NOTICE

■Head-up display projector

• Do not place any drinks near the head-up display projector. If the projector gets wet, electrical malfunctions may result.

• Do not place anything on or put stickers onto the head-up display projector.

  Doing so could interrupt head-up display indications.

• Do not touch the inside of the head-up display projector or thrust sharp edges or the like into the projector.

  Doing so could cause mechanical malfunctions.
