Toyota CH-R: Maintenance data (fuel, oil level, etc.)

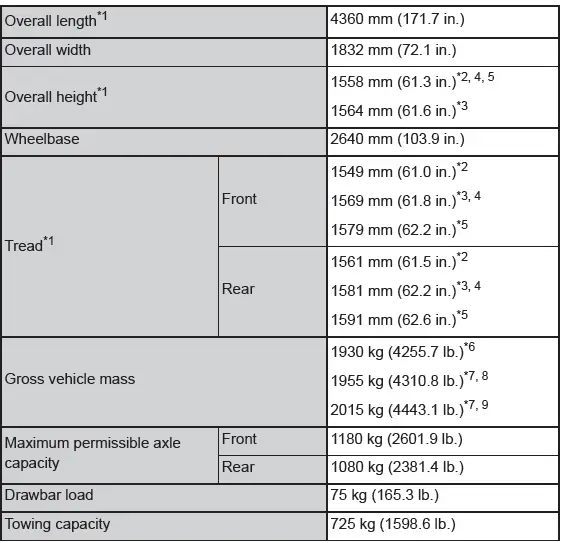

Dimensions and weights

*1: Unladen vehicles

*2: 20-inch tires

*3: 19-inch tires

*4: 18-inch tires

*5: 17-inch tires

*6: 2ZR-FXE engine

*7: M20A-FXS engine

*8: 2WD models

*9: AWD/4WD models

Vehicle identification

■ Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle.

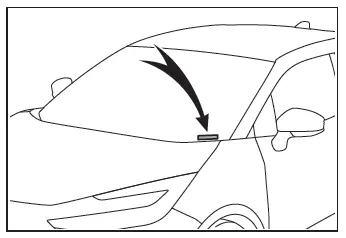

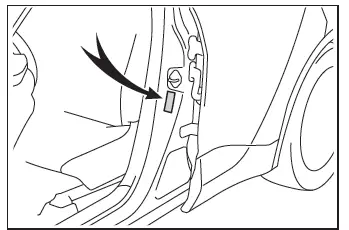

This number is stamped on the top left of the instrument panel.

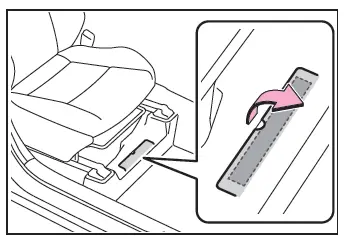

This number is stamped under the right-hand front seat.

This number is also on the manufacturer's label.

■ Engine number

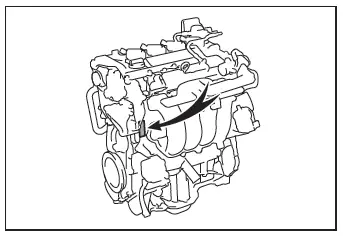

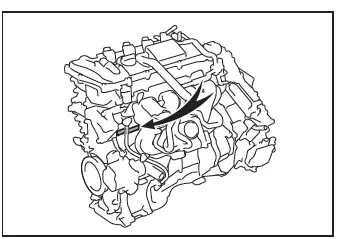

The engine number is stamped on the engine block as shown.

2ZR-FXE engine

M20A-FXS engine

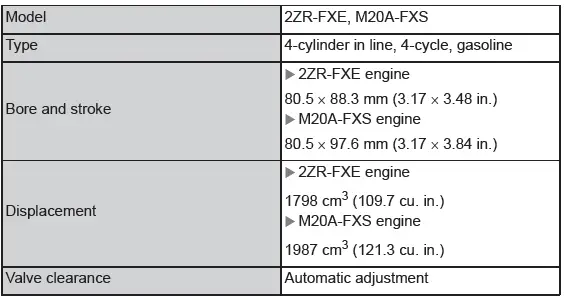

Engine

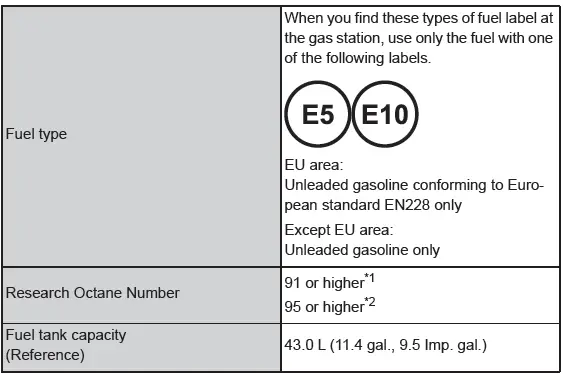

Fuel

*1: For Ukraine, Moldova, Azerbaijan and Georgia

*2: Except for Ukraine, Moldova, Azerbaijan and Georgia

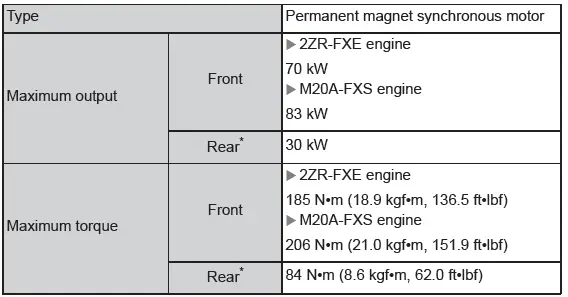

Electric motor (traction motor)

*: AWD/4WD models

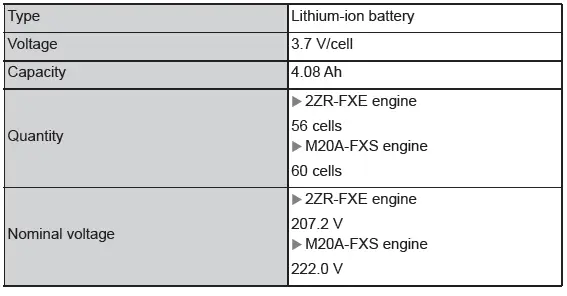

Hybrid battery (traction battery)

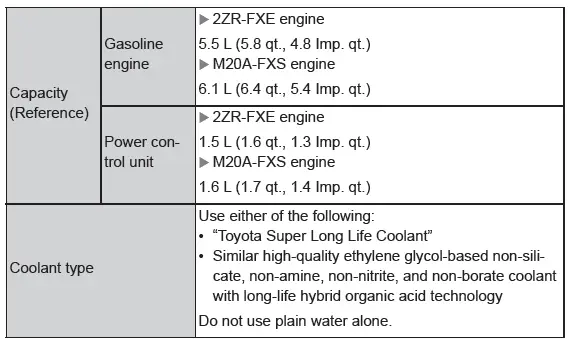

Lubrication system

■ Oil capacity (Drain and refill [Reference*] )

*: The engine oil capacity is a reference quantity to be used when changing the engine oil. When actually adding the engine oil, make sure that the oil level is between the low level mark and refill upper limit mark.

Warm up the engine and turn off the hybrid system, wait about 5 minutes, and check the oil level on the dipstick.

■ Engine oil selection

"Toyota Genuine Motor Oil" is used in your Toyota vehicle. Toyota recommends the use of approved "Toyota Genuine Motor Oil".

Another motor oil of matching quality can also be used.

Oil grade:

0W-16:

API grade SN "Resource-Conserving", SN PLUS "Resource-Conserving" or SP "Resource-Conserving"; or ILSAC GF-6B multigrade engine oil

0W-20 and 5W-30:

API grade SM "Energy-Conserving", SN "Resource-Conserving", SN PLUS "Resource-Conserving"; or SP "Resource-Conserving"; or ILSAC GF-6A multigrade engine oil Recommended viscosity (SAE):

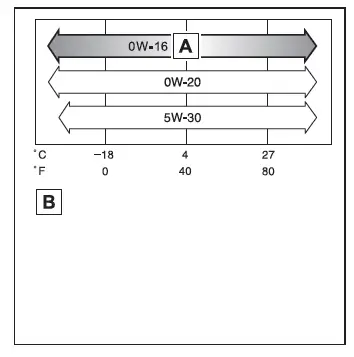

1. Preferred
2. Temperature range anticipated before next oil change

SAE 0W-16 is filled into your Toyota vehicle at manufacturing, and the best choice for good fuel economy and good starting in cold weather. If SAE 0W-16 oil is not available, SAE 0W-20 oil may be used. However, it should be replaced with SAE 0W-16 at the next oil change.

Oil viscosity (0W-16 is explained here as an example):

• The 0W in 0W-16 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil when the oil is at high temperature.

  An oil with a higher viscosity (one with a higher value) may be better suited if the vehicle is operated at high speeds, or under extreme load conditions.

How to read oil container labels: Either or both API registered marks are added to some oil containers to help you select the oil you should use.

1. API Service Symbol

Top portion: "API SERVICE SP" means the oil quality designation by American Petroleum Institute (API).

Center portion: "SAE 0W-16" means the SAE viscosity grade.

Lower portion: "Resource-Conserving" means that the oil has fuel-saving and environmental protection capabilities.

2. ILSAC Certification Mark

The International Lubricant Specification Advisory Committee (ILSAC) Certification Mark is displayed on the front of the container.

Cooling system

Ignition system (spark plug)

NOTICE

■Iridium-tipped spark plugs

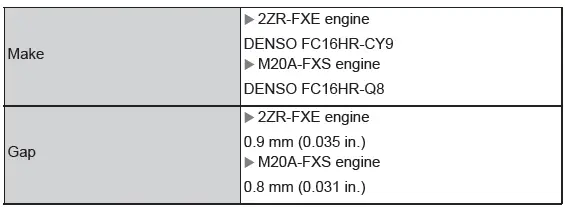

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

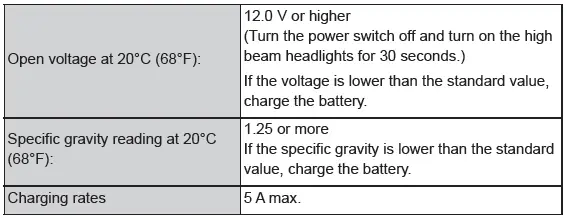

Electrical system (12-volt battery)

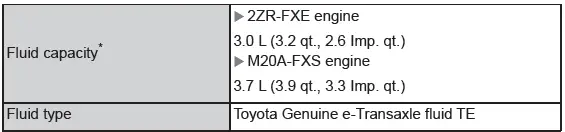

Hybrid transmission

*: The fluid capacity is a reference quantity.

If replacement is necessary, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

NOTICE

■Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the transmission of your vehicle.

Rear differential (rear electric motor) (AWD/4WD)

*: The fluid capacity is a reference quantity.

If replacement is necessary, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

NOTICE

■Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the transmission of your vehicle.

Brakes

*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf, 67.4 lbf) while the hybrid system is operating.

*2: Make sure to confirm that the brake warning light (yellow) does not illuminate. (If the brake warning light illuminates)

Steering

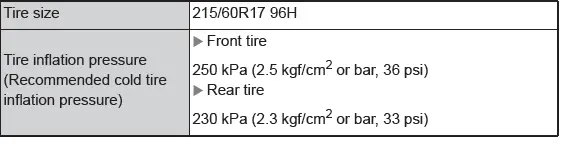

17-inch tires

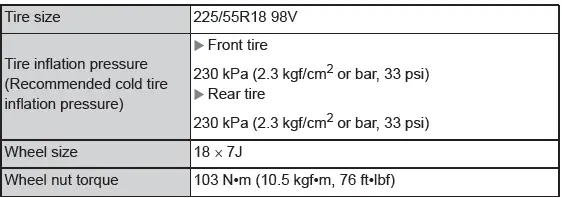

18-inch tires

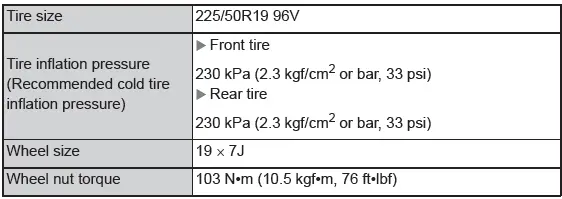

19-inch tires

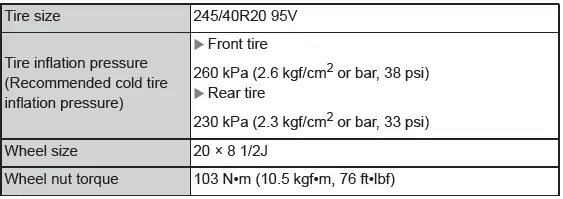

20-inch tires

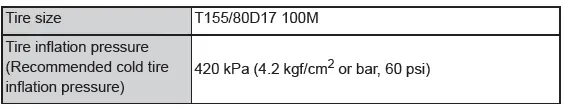

Compact spare tire (if equipped)

Light bulbs

A: Wedge base bulbs (clear)
