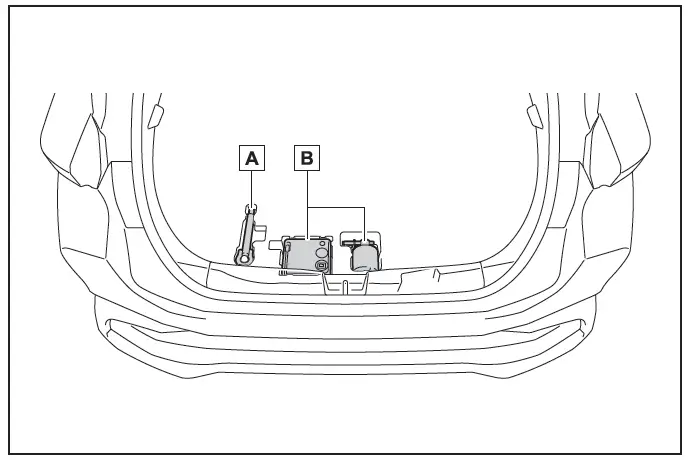

Toyota CH-R: Location of the emergency tire puncture repair kit and tools

1. Towing eyelet
2. Emergency tire puncture repair kit

Emergency tire puncture repair kit components

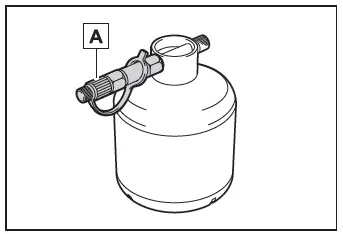

Bottle

1. Nozzle

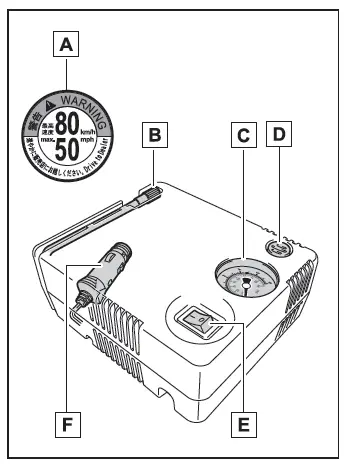

Compressor

1. Sticker
2. Hose
3. Air pressure gauge
4. Pressure release button
5. Compressor switch
6. Power plug

■Note for checking the emergency tire puncture repair kit

Check the sealant expiry date occasionally.

The expiry date is shown on the bottle.

Do not use sealant whose expiry date has already passed. Otherwise, repairs conducted using the emergency tire puncture repair kit may not be performed properly.

■Emergency tire puncture repair kit

• The emergency tire puncture repair kit is for filling the car tire with air.
• The sealant has a limited life span.

  The expiry date is marked on the bottle.

  The sealant should be replaced before the expiry date. Contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer for replacement.

• The sealant stored in the emergency tire puncture repair kit can be used only once to temporarily repair a single tire. If the sealant has been used and needs to be replaced, purchase a new bottle at any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer. The compressor is reusable.
• The sealant can be used when the outside temperature is from -30ºC (-22ºF) to 60ºC (140ºF).
• The kit is exclusively designed for size and type of tires originally installed on your vehicle. Do not use it for tires that a different size than the original ones, or for any other purposes.
• If the sealant gets on your clothes, it may stain.
• If the sealant adheres to a wheel or the surface of the vehicle body, the stain may not be removable if it is not cleaned at once. Immediately wipe away the sealant with a wet cloth.
• During operation of the repair kit, a loud operation noise is produced. This does not indicate a malfunction.
• Do not use to check or to adjust the tire pressure.

WARNING

■Caution while driving

• Store the repair kit in the luggage compartment.

  Injuries may result in the event of an accident or sudden braking.

• The repair kit is exclusively only for your vehicle.

  Do not use repair kit on other vehicles, which could lead to an accident causing death or serious injury.

• Do not use repair kit for tires that are different size than the original ones, or for any other purpose. If the tires have not been completely repaired, it could lead to an accident causing death or serious injury.

■Precautions for use of the sealant

• Ingesting the sealant is hazardous to your health. If you ingest sealant, consume as much water as possible, and then immediately consult a doctor.
• If sealant gets in eyes or adheres to skin, immediately wash it off with water. If discomfort persists, consult a doctor.

If you have a flat tire (vehicles with an emergency tire puncture repair kit)Taking out the emergency tire puncture repair kit
