Toyota CH-R: Electronic key battery

Replace the battery with a new one if it is depleted.

As the key may be damaged if the following procedure is not performed properly, it is recommended that key battery replacement be performed by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

■If the electronic key battery is depleted

The following symptoms may occur:

• The smart entry & start system and wireless remote control will not function properly.
• The operational range will be reduced.

Items to prepare

• Flathead screwdriver
• Small flathead screwdriver
• Lithium battery CR2450

■Use a CR2450 lithium battery

• Batteries can be purchased at any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer, local electrical appliance shops or camera stores.
• Replace only with the same or equivalent type recommended by the manufacturer.
• Dispose of used batteries according to local laws.

Replacing the battery

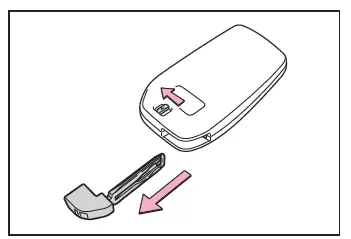

1. Release the lock and remove the mechanical key.

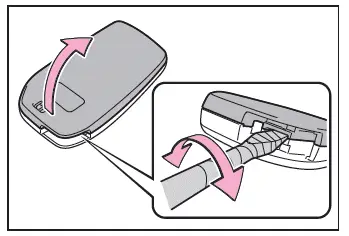

2. Remove the key cover.

Use a screwdriver of an appropriate size. Forcedly prying may cause the cover damaged.

To prevent damage to the key, cover the tip of the flathead screwdriver with a tape.

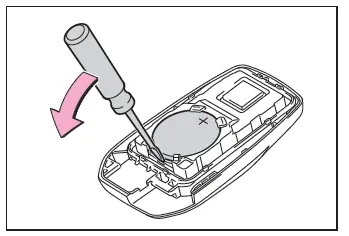

3. Remove the depleted battery using a small flathead screwdriver.

When removing the cover, the electronic key module may stick to the cover and the battery may not be visible.

In this case, remove the electronic key module in order to remove the battery.

When removing the battery, use a screwdriver of an appropriate size.

Insert a new battery with the "+" terminal facing up.

4. When installing the key cover and mechanical key, install by conducting step 2 and step 1 with the directions reversed.

5. Operate the or switch and check that the doors can be locked/unlocked.

WARNING

■Battery precautions

Observe the following precautions.

Failure to do so may result in death or serious injury.

• Do not swallow the battery. Doing so may cause chemical burns.
• A coin battery or button battery is used in the electronic key. If a battery is swallowed, it may cause severe chemical burns in as little as 2 hours and may result in death or serious injury.
• Keep away new and removed batteries from children.
• If the cover cannot be firmly closed, stop using the electronic key and stow the key in the place where children cannot reach, and then contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
• If you accidentally swallow a battery or put a battery into a part of your body, get emergency medical attention immediately.

■To prevent battery explosion or leakage of flammable liquid or gas

• Replace the battery with a new battery of the same type. If a wrong type of battery is used, it may explode.
• Do not expose batteries to extremely low pressure due to high altitude or extremely high temperatures.
• Do not burn, break or cut a battery.

■Lithium battery precautions

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

NOTICE

■When replacing the battery

Use a flathead screwdriver of appropriate size. Applying excessive force may deform or damage the cover.

■For normal operation after replacing the battery

Observe the following precautions to prevent accidents:

• Always work with dry hands.

  Moisture may cause the battery to rust.

• Do not touch or move any other component inside the remote control.
• Do not bend either of the battery terminals.
