Toyota CH-R: Customization

Customizable features

Your vehicle includes a variety of electronic features that can be personalized to suit your preferences. The settings of these features can be changed using the multi-information display, the multimedia system or at any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

Customizing vehicle features

■ Changing by using the multimedia system

1. Select on the main menu.

2. Select "Vehicle customise".

3. According to the display, select the desired setting.

Various setting can be changed.

Refer to the list of settings that can be changed for details.

■ Changing by using the meter control switches (with 7-inch display)

1. Press of the meter control switch to select .

2. Press of the meter control switch to select the desired item to be customized.

3. Press or press and hold .

The available settings will differ depending on if is pressed or pressed and held. Follow the instructions on the display.

■ Changing by using the meter control switches (with 12.3- inch display)

1. Press and hold to display the cursor on the content display area (center) of the multi-information display.

2. Press of the meter control switches to select " Settings" and press .

3. Press of the meter control switches, select the item.

4. To switch the function on and off, press to switch to the desired setting.

5. To perform detailed setting of functions that support detailed settings, press and hold and display the setting screen.

The method of performing detailed setting differs for each screen.

Please refer to the advice sentence displayed on the screen.

The method of performing detailed setting differs for each screen.

Please refer to the advice sentence displayed on the screen.

WARNING

■During customization

As the hybrid system needs to be operating during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.

NOTICE

■During customization

To prevent 12-volt battery discharge, ensure that the hybrid system is operating while customizing features.

Customizable features

Some function settings are changed simultaneously with other functions being customized. Contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer for further details.

1. Settings that can be changed using the multimedia system
2. Settings that can be changed using the multi-information display
3. Settings that can be changed by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer

Definition of symbols: O = Available, - = Not available

■ Predictive efficient drive*

*: If equipped

■ Alarm*

*: If equipped

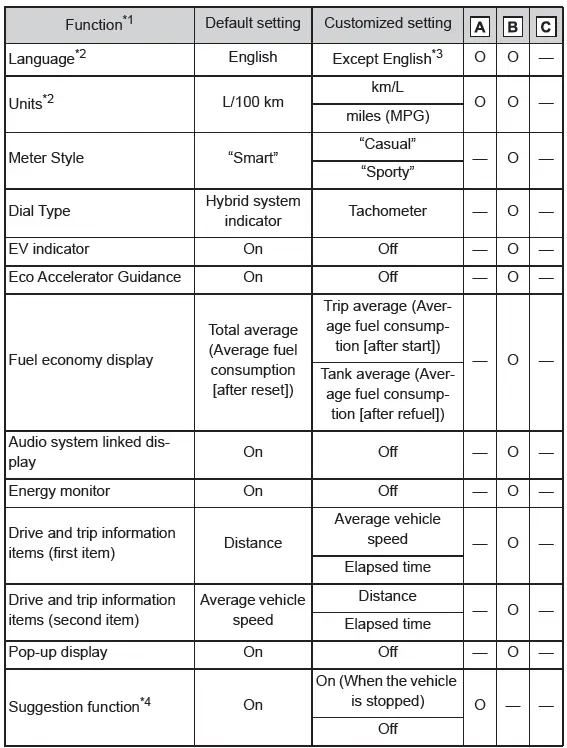

■ Gauges, meters and multi-information display (with 7-inch display)

*1: For details about each function.

*2: The default setting varies according to country.

*3: Available languages may differ depending on the target region.

*4: The default setting is changed in conjunction with the settings of My Settings.

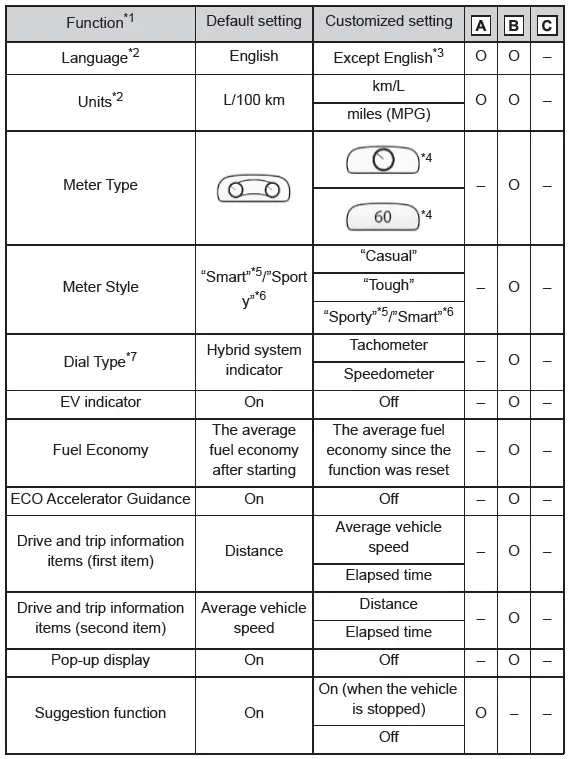

■ Gauges, meters and multi-information display (with 12.3-inch display)

*1: For details about each function.

*2: The default setting varies according to country.

*3: Available languages may differ depending on the target region.

*4: The on/off operation of the widget can be changed.

*5: Except GR SPORTV

*6: For GR SPORT

*7: The setting may not be changed depending on currently selected meter type.

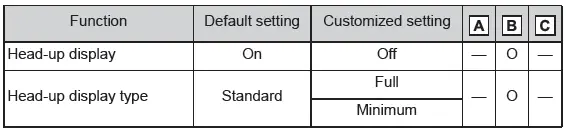

■ Head-up display*

*: If equipped

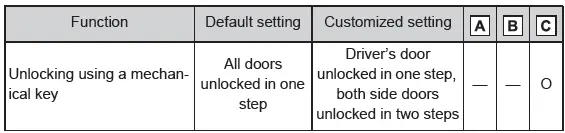

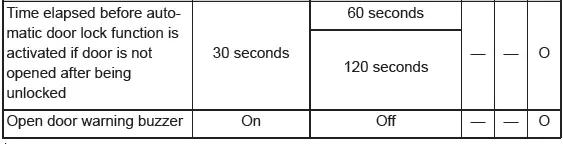

■ Door lock

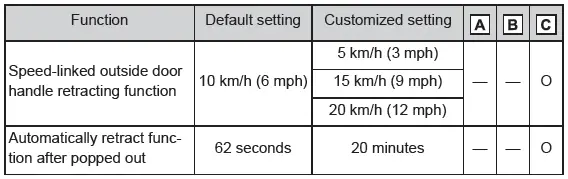

■ Outside door handle

■ Entry function* and wireless remote control

*: If equipped

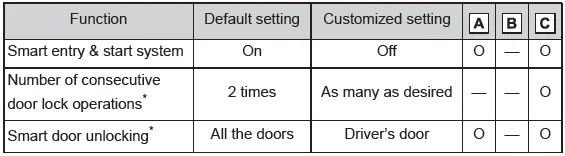

■ Smart entry & start system

*: Vehicles with entry function

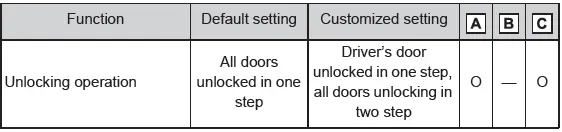

■ Wireless remote control

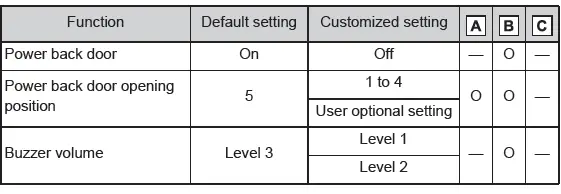

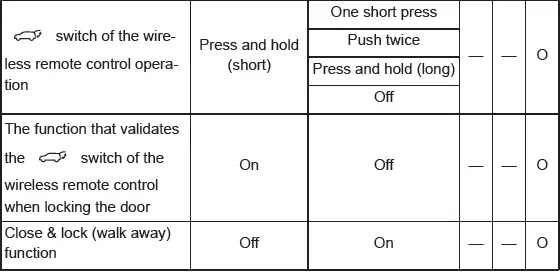

■ Power back door*

*: If equipped

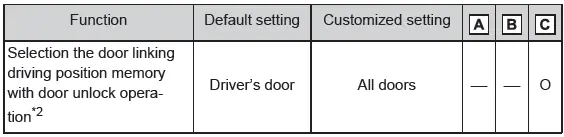

■ Driving position memory*1

*1: If equipped

*2: The default setting is changed in conjunction with the settings of My Settings.

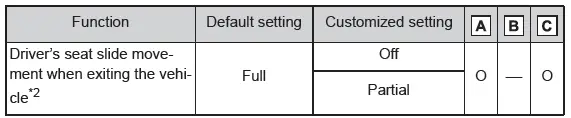

■ Enabling easier driver entry and exit (power easy access system)*1

*1: If equipped

*2: The default setting is changed in conjunction with the settings of My Settings.

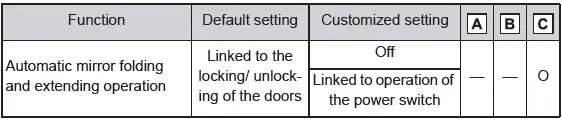

■ Outside rear view mirrors*

*: If equipped

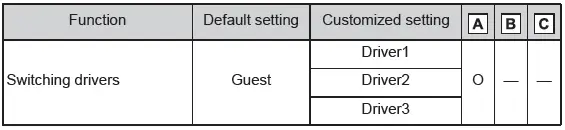

■ My Settings

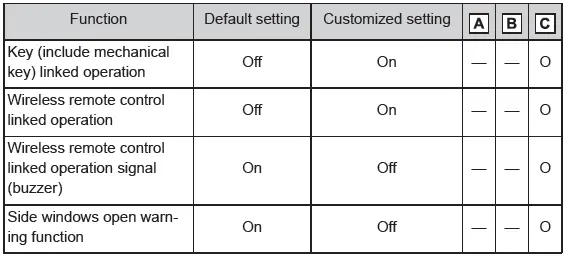

■ Power windows

■ Power switch

■ Reverse warning buzzer

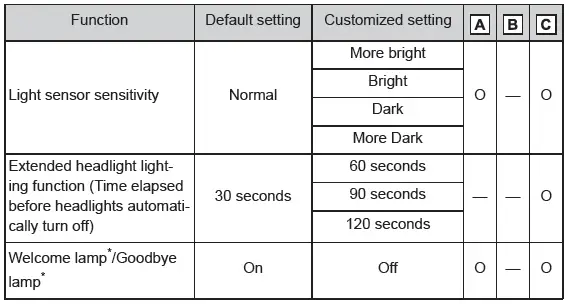

■ Automatic light control system

*: If equipped

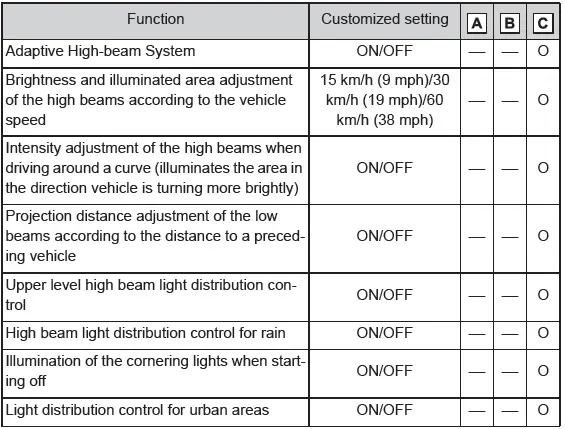

■ AHS (Adaptive High-beam System)*

*: If equipped

■ Driver monitor*1

*1: If equipped

*2: This setting changes in accordance with My Settings.

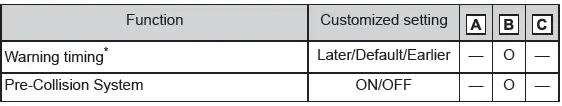

■ PCS (Pre-Collision System)

*: This setting changes in accordance with My Settings.

■ LCA (Lane Change Assist)*1

*1: If equipped

*2: This setting changes in accordance with My Settings.

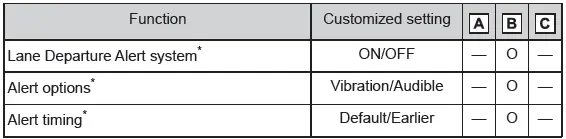

■ LDA (Lane Departure Alert)

*: This setting changes in accordance with My Settings.

■ Driver break suggestion

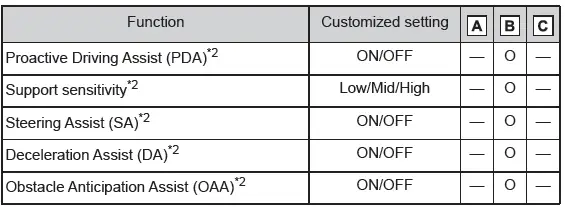

■ PDA (Proactive driving assist)*1

*1: If equipped

*2: This setting changes in accordance with My Settings.

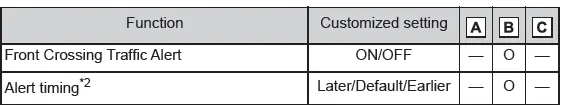

■ FCTA (Front crossing traffic alert)*1

*1: If equipped

*2: This setting changes in accordance with My Settings.

■ FCTA (Front crossing traffic alert)*1

*1: If equipped

*2: The customized setting varies according to country

*3: This setting changes in accordance with My Settings.

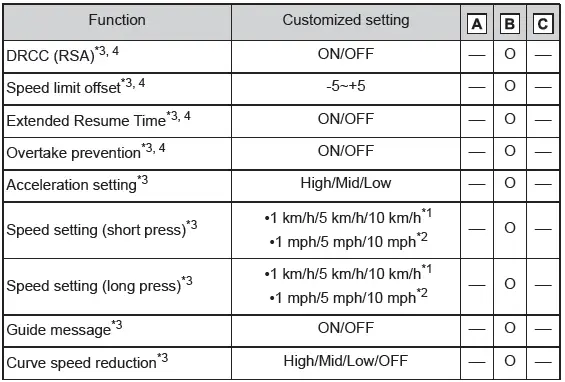

■ Dynamic radar cruise control/Speed Limiter*4

*1: When the set speed is shown in "km/h"

*2: When the set speed is shown in "MPH"

*3: This setting changes in accordance with My Settings.

*4: If equipped

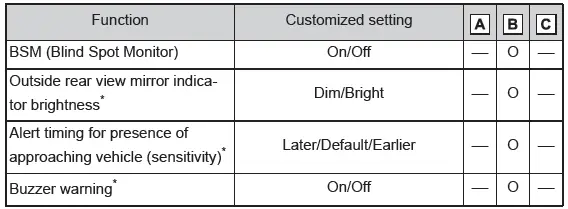

■ BSM (Blind Spot Monitor)

*: This setting changes in accordance with My Settings

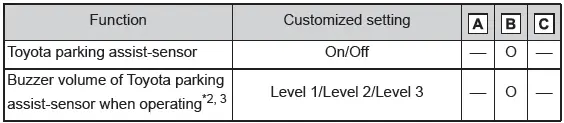

■ Toyota parking assist-sensor*1

*1: If equipped

*2: This setting changes in accordance with My Settings

*3: The sound volume is linked among the Toyota parking assist-sensor, RCTA, and RCD.

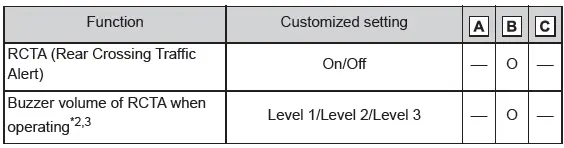

■ RCTA (Rear Crossing Traffic Alert)*1

*1: If equipped

*2: This setting changes in accordance with My Settings

*3: The sound volume is linked among the Toyota parking assist-sensor, RCTA, and RCD.

■ PKSB (Parking Support Brake)*1

*1: If equipped

*2: This setting changes in accordance with My Settings

■ RCD (Rear Camera Detection)*

*: If equipped

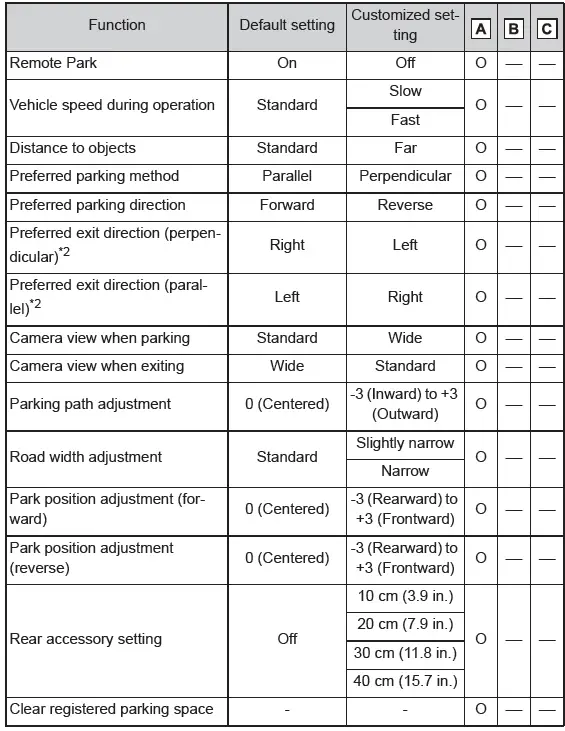

■ Toyota Teammate Advanced Park*1

*1: If equipped

*2: The default setting varies according to country.

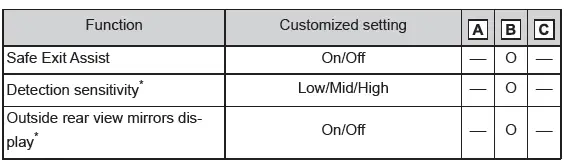

■ Safe Exit Assist

*: This setting changes in accordance with My Settings

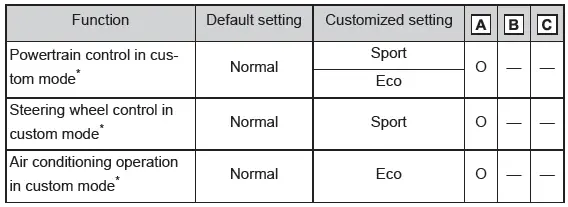

■ Driving Mode Select switch

*: If equipped

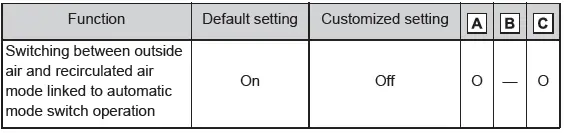

■ Automatic air conditioning system

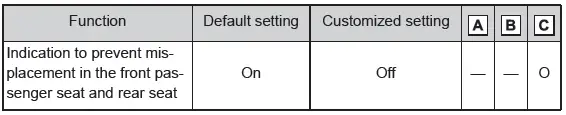

■ Passenger and rear seat reminder

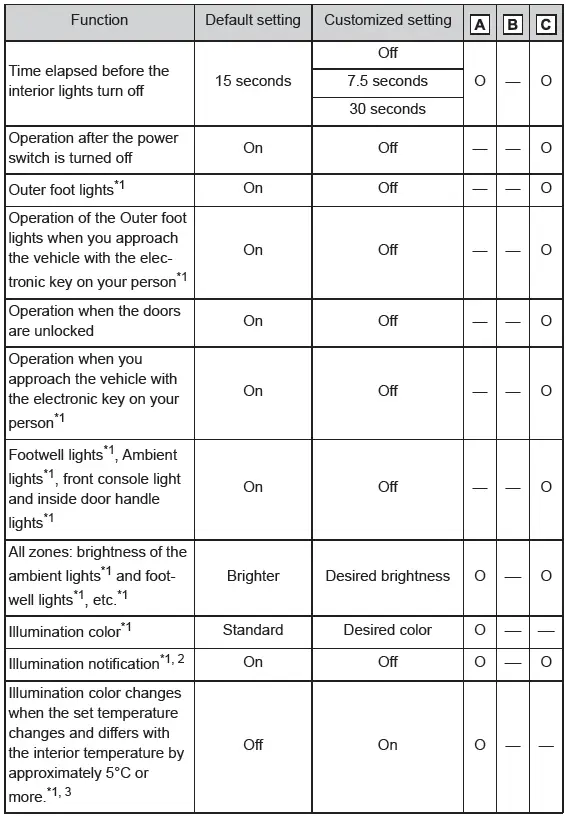

■ Illumination

*1: If equipped

*2: If the ambient lights is set to Off, this setting will also be set to Off.

*3: Illumination color will also change when the temperature control switches are operated.

■Vehicle customization

When the smart entry & start system is off, Smart door unlocking cannot be customized.

■In the following situations, customize mode in which the settings can be changed through the multi-information display will automatically be turned off

• A warning message appears after the customize mode screen is displayed
• The power switch is turned off.
• The vehicle begins to move while the customize mode screen is displayed.

Initialization

Items to initialize

The following items must be initialized for normal system operation after such cases as the 12-volt battery being reconnected, or maintenance being performed on the vehicle:

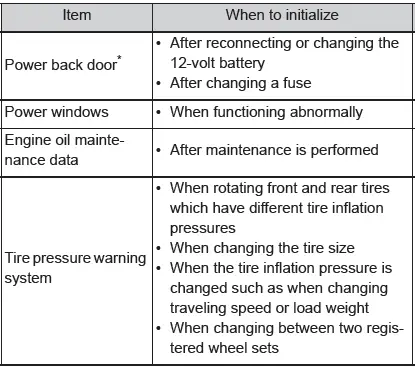

List of items to initialize

*: If equipped
