Toyota CH-R: Correct use of the seat belts

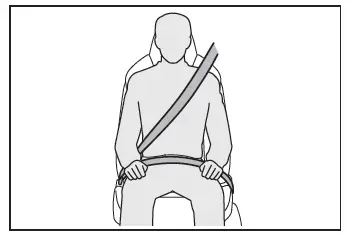

• Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.
• Position the lap belt as low as possible over the hips.
• Adjust the position of the seatback. Sit up straight and well back in the seat.
• Do not twist the seat belt.

■Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size.

• Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle's seat belt.
• When the child becomes large enough to properly wear the vehicle's seat belt, follow the instructions regarding seat belt usage.

■Seat belt regulations

If seat belt regulations exist in the country where you reside, please contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer for seat belt replacement or installation.

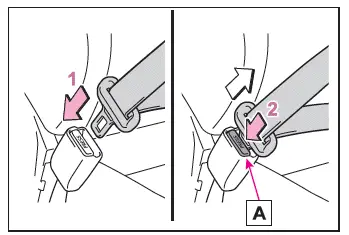

Fastening and releasing the seat belt

1. To fasten the seat belt, push the plate into the buckle until a click sound is heard.

2. To release the seat belt, press the release button A.

■Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly.

When the seat belt locks, pull the belt strongly and then release the belt, then a slow and easy pulling will allow the belt to extend.

■After using the rear center seat belt

Stow seat belt buckle in the pocket.

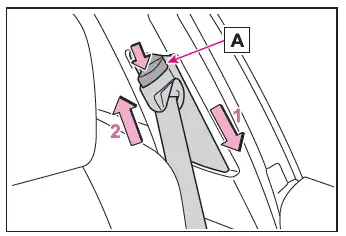

Adjusting the seat belt shoulder anchor height (front seats)

1. Push the seat belt shoulder anchor down while pressing the release button A.

2. Push the seat belt shoulder anchor up while pressing the release button A.

Move the height adjuster up and down as needed until you hear a click.

WARNING

■Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious injuries in the event of a sudden stop, sudden swerve or accident.

Seat belt pretensioners

When the vehicle is subjected to a severe frontal or side impact, the pretensioners retract the seat belts of the front seats and rear outer seats to securely restrain the occupants.

The pretensioners will not operate in minor frontal or side impacts, rear impacts, or vehicle rollovers.

■Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent collisions.

■PCS-linked control

If the PCS (Pre-Collision System) determines that the possibility of a collision with a vehicle is high, the seat belt pretensioners will be prepared to operate.

WARNING

■Seat belt pretensioners

If a pretensioner has operated, the SRS warning light will illuminate. In this situation, the seat belt cannot be used and must be replaced by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

Failure to do so may result in death or serious injury.
