Toyota CH-R: Components

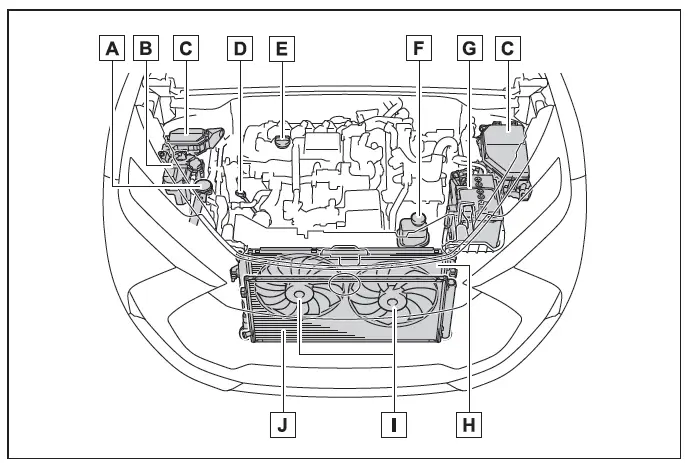

2ZR-FXE engine

1. Washer fluid tank
2. Engine coolant reservoir
3. Fuse boxes (If equipped)
4. Engine oil level dipstick
5. Engine oil filler cap
6. Power control unit coolant reservoir
7. 12-volt battery
8. Radiator
9. Electric cooling fans
10. Condenser

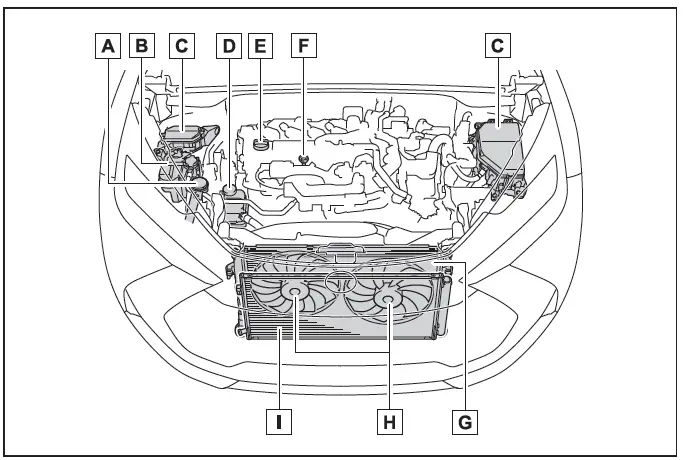

M20A-FXS engine

1. Washer fluid tank
2. Engine coolant reservoir
3. Fuse boxes
4. Power control unit coolant reservoir
5. Engine oil filler cap
6. Engine oil level dipstick
7. Radiator
8. Electric cooling fans
9. Condenser
