Toyota CH-R: Checking tires

Check if the treadwear indicators are showing on the tires. Also check the tires for uneven wear, such as excessive wear on one side of the tread.

Vehicles with a compact spare tire: Check the compact spare tire condition and pressure if not rotated.

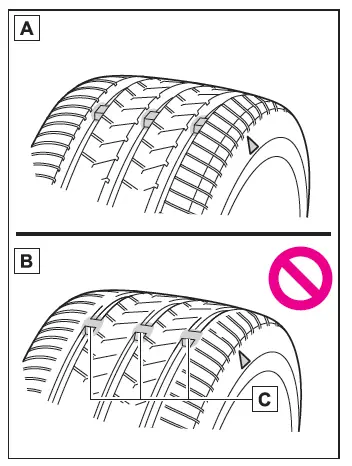

1. New tread
2. Worn tread
3. Treadwear indicator

The location of treadwear indicators is shown by a "TWI" or " " mark, etc., molded into the sidewall of each tire.

Replace the tires if the treadwear indicators are showing on a tire.

■When to replace your vehicle's tires

Tires should be replaced if:

• The treadwear indicators are showing on a tire.
• You have tire damage such as cuts, splits, cracks deep enough to expose the fabric, and bulges indicating internal damage
• A tire goes flat repeatedly or cannot be properly repaired due to the size or location of a cut or other damage

If you are not sure, consult with any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

■Tire life

Any tire over 6 years old must be checked by a qualified technician even if it has seldom or never been used, or damage is not obvious.

■If the tread on snow tires wears down below 4 mm (0.16 in.)

The effectiveness of the tires as snow tires is lost.

■Checking the tire valves

When replacing the tires, check the tire valves for deformation, cracks, and other damage.

■Low profile tires (if equipped)

Generally, low profile tires will wear more rapidly and tire grip performance will be reduced on snowy and/or icy roads when compared to standard tires.

Be sure to use snow tires or tire chains on snowy and/or icy roads and drive carefully at a speed appropriate for road and weather conditions.

WARNING

■When inspecting or replacing tires

Observe the following precautions to prevent accidents.

Failure to do so may cause damage to parts of the drivetrain as well as dangerous handling characteristics, which may lead to an accident resulting in death or serious injury.

• Do not mix tires of different makes, models or tread patterns.

  Also, do not mix tires of remarkably different treadwear.

• Do not use tire sizes other than those recommended by Toyota.
• Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
• Do not mix summer, all season and snow tires.
• Do not use tires that have been used on another vehicle.

  Do not use tires if you do not know how they were used previously.

• Vehicles with a compact spare tire: Do not tow if your vehicle has a compact spare tire installed.
• Vehicles with an emergency tire puncture repair kit: Do not tow anything if a tire that has been repaired using the emergency tire puncture repair kit is installed. The load on the tire may cause unexpected damage to the tire.

NOTICE

■If tire inflation pressure of each tire becomes low while driving

Do not continue driving, or your tires and/or wheels may be ruined.

■Driving on rough roads

Take particular care when driving on roads with loose surfaces or potholes.

These conditions may cause losses in tire inflation pressure, reducing the cushioning ability of the tires. In addition, driving on rough roads may cause damage to the tires themselves, as well as the vehicle's wheels and body.
