Toyota CH-R: Changing settings of the power back door system (vehicles with power back door)

The settings of the power back door system can be changed by displaying the (vehicles with 7-inch display) or " Settings" (vehicles with 12.3-inch display) - screen from the setting screen of the multi-information display.

The changed power back door settings are not reset by turning the power switch to OFF. In order to restore the original settings, they need to be changed back on the setting screen of the multi-information display.

Adjusting the open position of the back door (vehicles with power back door)

The open position of the power back door can be adjusted.

1. Stop the back door in the desirable position.

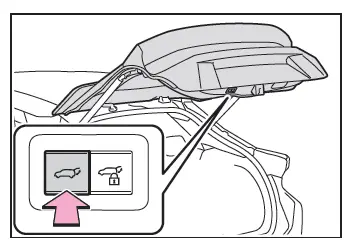

2. Press and hold the power back door switch on the back door for approximately 2 seconds.

When the settings are completed, the buzzer sounds 4 times.

When opening the back door the next time, the back door will stop at that position.

■Canceling the adjusted open position of the back door

Press and hold the power back door switch on the back door for approximately 7 seconds.

After the buzzer sounds 4 times, it sounds twice more. When the power back door does the opening operation the next time, the door will open to the initial settings position.

■Customization

The opening position can be set with the multi-information display.

Priority for the stop position is given to the last position set by either the power back door switch on the back door or multi-information display.
