Toyota CH-R: Air outlet layout and operations

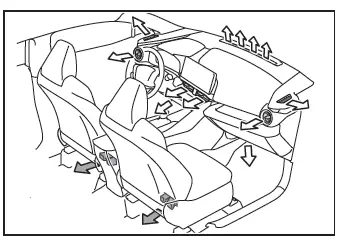

■ Location of air outlets

The air outlets and air volume changes according to the selected air flow mode.

: If equipped

■ Adjusting the position of and opening and closing the air outlets

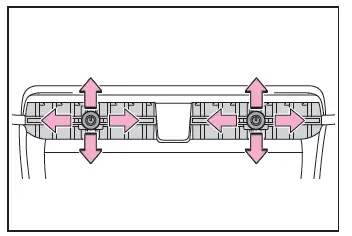

Direct air flow to the left or right, up or down.

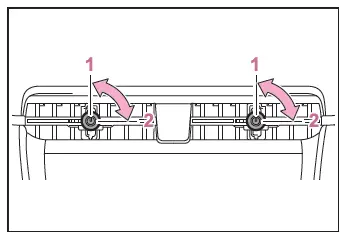

Turn the knob fully to the right to close the vent.

1. Open the vent
2. Close the vent

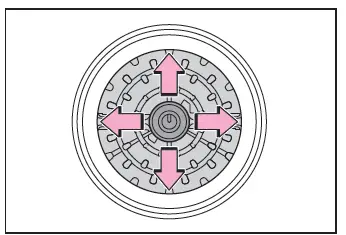

Direct air flow to the left or right, up or down

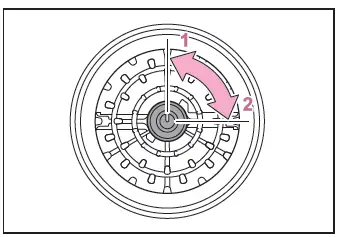

Turn the knob fully to the right to close the vent.

1. Open the vent
2. Close the vent

WARNING

■To prevent the windshield defogger from operating improperly

Do not place anything on the instrument panel which may cover the air outlets. Otherwise, air flow may be obstructed, preventing the windshield defoggers from defogging.

■ Air conditioning refrigerant

Type: R-1234yf (HFO-1234yf)

Capacity: 0.47 kg (1.04 lb.)

GWP (Global Warming Potential): 0.501

CO2 equivalent: 0.000235 t (0.518 lb.)
